In Depth

Across the Natural History Building, there hundreds of classrooms, offices, laboratories, hallways, and common seating areas. These chambers each possess doors, jambs, and a mixture of wall and base trim. As is common in school buildings, due to their exceptionally high amount of foot traffic and use, the the wood across the History Building had become riddled with scratches, dents, holes, breaks, and discolorations. The general contractor for the restoration project removed and labeled the wood from the Natural History Building, before shipping it to Heritage Restoration in multiple semi-trucks.

Before work could begin to restore the millwork, Heritage’s staff spend several days cataloging and storing each piece of wood in a database. A particularly challenging item to record was the base trim, as it was composed of multiple separate profiles that are assembled in layers to make a complete whole. These profiles were digitally recorded for duplication if additional lineal footage was requested by the general contractor. Since the refinishing process would erase the contractor’s identifying marks, a firm tracking system was developed to ensure that each wood piece could be correctly relabeled after being finished. Without these markings, it would be impossible to correctly ascertain which trim goes into which room during the reinstallation phase of the restoration project.

To begin the restoration process, the doors were each treated with chemicals to remove the existing layers of paint and finish and expose their original wood surface. Next, any dents and chipped edges were patched using restoration compounds. Larger holes were filled using the ‘dutchman’ method, where precisely cut wooden stops are inserted into a hole and sanded to the correct depth. breaks in the doors were filled. This technique was also used to fill the large cuts that had been used to house the antique door hardware. More modern locksets and handles would be installed into these spaces by Heritage later in the project. After surface and structural repairs were made to the doors, they were moved from our wood shop into a designated refinishing area. First, the wood was stained to a client specified color. This stain would be left to cure for several days before being sealed with finishes that add protection and luster to the wood.

While the doors were being worked on, Heritage devoted a portion of our staff to assessing the condition of the many miles of wood trim brought to us from the Natural History Building. The majority of the trim was in a salvageable condition, and underwent the same patching and refinishing processes as the doors. Unfortunately, some of the wood was in too poor of a condition to be worth restoring. With the contractor and client’s permission, these boards were recreated as exact duplicates using the profile information stored during the cataloging process. Once they were milled, the new wood was coated and finished to match the existing trim.

Originally, the Natural History Building had a twin set of interior staircases that strecthed from the highest to lowest floors. One of these staircases was removed in a previous renovation. Based off an examination of its existing counterpart, Heritage’s design staff set about creating blueprints and computer models for creating a replacement set of stairs. Once these designs were approved by the general contractor, fabrication began on hundreds of rails and spindles that comprise the railing. Hundreds of students will be using these stairs daily, as such Heritage ensured that the design was built with stability chiefest in mind. Our goal was to create a set of stairs that would last for many years of strenuous use.

To exactly duplicate the complex filigree ornaments on the staircase, Heritage’s design staff traveled to the Natural History building and took dozens of photographs of each element on the surviving stairs. Swirling rosette moldings, decorative scroll panels, and elaborate newel post caps were digitally modeled using the information gathered at the job site. These models were carved into wood using CNC machines. After being stained and finished, all of the stair components were assembled into sections and transported back to the Natural History Building. At the job site, Heritage’s staff refinished the aged existing staircase to match their new counterpart.

It took a total of two years to restore and rebuild the vast quantities of wood for UIUC’s Natural History Building. After the general contractor reinstalled the wood components, Heritage’s staff went to the job site and provided touch up properly match their neighbors, these too were corrected. The restoration project was completed in time for the new school semester to begin. Heritage Restoration was proud to have participated in this large scale project. We feel that the fresh wood helps brighten the interior and create an appealing highlight to the building’s cream walls.

UIUC Natural History Building

An exterior image of the Ricker Natural History Building at the UIUC Campus.

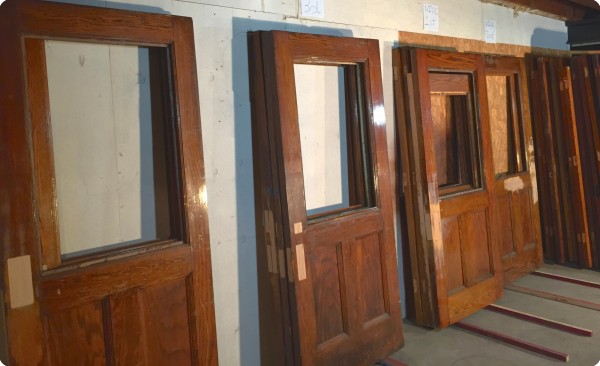

Several doors from the Natural History Building at Heritage before their restoration.

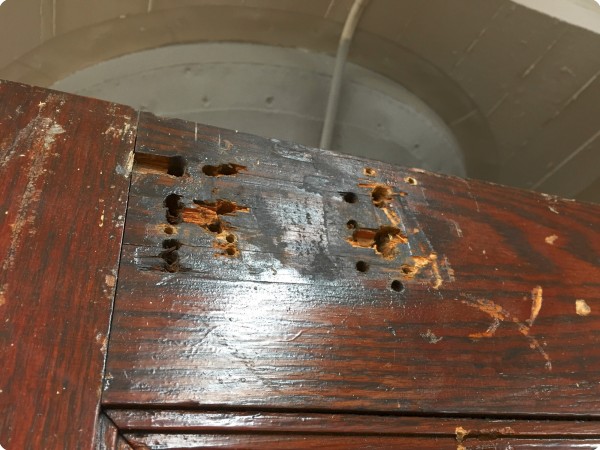

Damage and degradation on the base of a door that will be repaired before refinishing.

A 'dutchman' insert placed into the front of a door.

A fresh lock set being inserted into a classroom door.

A new handle installed into one of the restored doors.

Doors and matching dutchman patches being refinished to create a uniform appearance.

Restored doors that have been reinstalled at the Natural History Building.

Three doors that underwent refinishing are now back in their proper place at the university.

Completed office doors in the lower floor of the Natural History Building.

Damaged wall and base trim prior to the restoration.

Door jambs in storage at Heritage Restoration awaiting repairs and refinishing.

Millwork being sanded ad part of the leveling process prior to being stained and finished.

Restored base and wall trim that has been reinstalled.

Restained columns and millwork for a hallway at the History Building.

A look at the restored base and wall trim for a large seating area.

The damaged state of the surviving half of the main staircase at the Natural History Building.

After decades of continous use, the surface of the stairs was worn and tattered.

The decorative newel posts will require cleaning and touchup work.

This frame would be used by Heritage Restoration as a base for reconstructing the missing second staircase.

Heritage Restoration's 3D model for the new staircase. Once the architect approved the design, the construction process began.

One of Heritage's CNC machines is carving a decorative inset panel for the staircase rail.

Various components that will be assembled into one flight of the staircase.

A chemical aging process being applied to a newly cut post cap.

Foreground: The reconstructed stairs at the completion of the project. Background: The original stairway that was refinished.

Newel posts on the reconstructed staircase. The caps and roundels were carved as an exact match to the original stairs.

A closeup look at a digitally carved roundel on a newel post.

Our chief focus during the restoration was to ensure that the trim, staircases, and casing all matched in their finish and appearance.

Due to the building's design, the original staircase also contained a small flight of steps that connects to a door in the wall. This too was refinished along with its adjoining railings.

A front view of the restored staircases, as well as refinished window trim.
